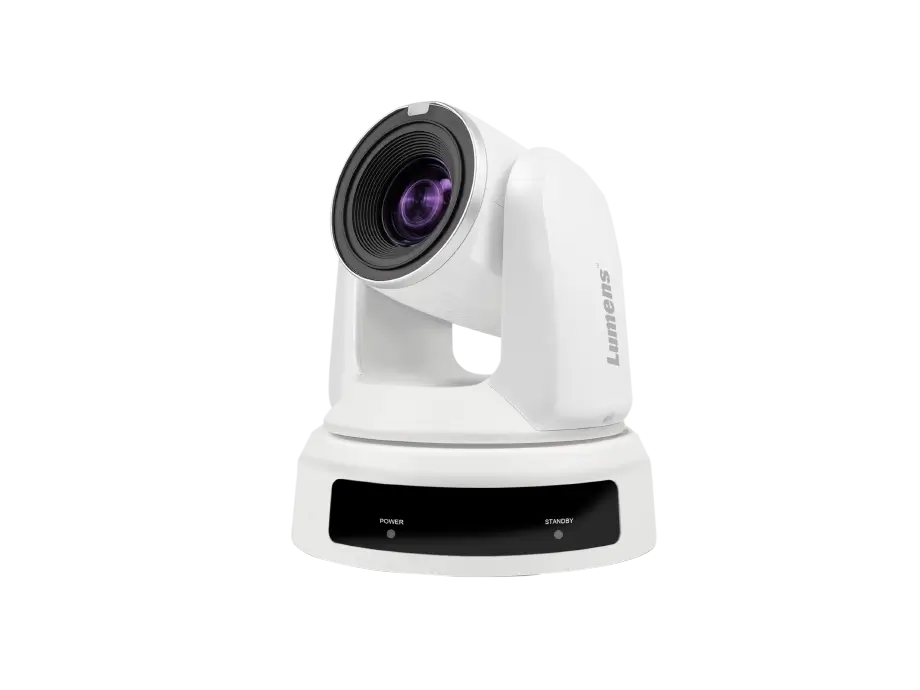

Full HD PTZ Camera – Professional PTZ conferencing camera with 20x optical zoom for enterprise and education

Full HD PTZ camera with IP streaming multi-interface HDMI SDI USB flexible control and stable performance

Professional PTZ solution for conferencing and content production

The Full HD PTZ Camera is designed for large meeting rooms, lecture halls, studios, and professional environments, delivering flexible camera control and reliable video quality.

It enables organizations to deploy efficient AV systems for conferencing, streaming, and recording.

Full HD image quality with Sony sensor

Equipped with a 1/2.8″ 2.16MP Sony CMOS sensor, the camera supports up to 1080p at 60fps, ensuring clear and smooth video performance

Advanced image processing technologies such as WDR and 3D noise reduction enhance performance in low-light environments

20x optical zoom for long-distance capture

The camera features 20x optical zoom and 12x digital zoom, enabling high-quality capture even at long distances

This makes it ideal for large rooms and event spaces.

High-speed PTZ control with precision

It supports pan ±170° and tilt +90°/-30° with speeds up to 225°/second for fast and accurate movement

Up to 256 presets allow quick switching between camera angles

Multi-interface output and IP streaming

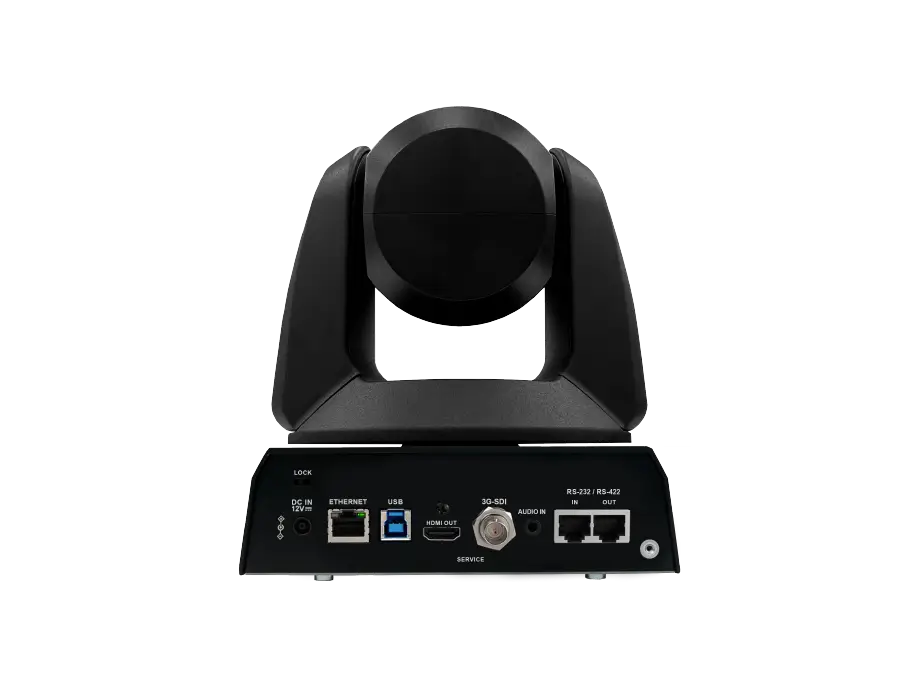

The camera supports simultaneous output via HDMI, 3G-SDI, USB, and Ethernet, ensuring flexible integration

It also supports streaming protocols such as RTSP, RTMP, SRT, and MPEG-TS for professional broadcasting

Flexible control and system integration

Supports RS-232, RS-422, USB, and IP control with VISCA and ONVIF protocols

This ensures seamless integration into professional AV systems.

PoE support and flexible installation

The camera supports PoE and DC power options, simplifying installation and deployment

It can be mounted on a desk, ceiling, or wall depending on requirements.

Ideal for enterprise and education

This PTZ camera is a reliable solution for enterprise conferencing, education, and live production environments.

Contact Ademax for consultation, pricing, and deployment solutions tailored to your needs.

ADEMAX – MAKING THE DIFFERENCE

Audio Visual Solutions, IT Infrastructure & Digital Transformation

Hotline: +84 97 190 1666

Email: marketing@ademax.com.vn

Fanpage: Ademax JSC

General

• Product: Full HD PTZ Camera
• Model: VC-A53
• Type: PTZ IP Camera

Camera

• Sensor: 2.16MP Sony CMOS
• Resolution: 1080p 60fps

Lens

• Optical zoom: 20x
• Digital zoom: 12x

PTZ

• Pan: ±170°
• Tilt: +90° / -30°
• Speed: 225°/sec
• Presets: 256

Video Output

• HDMI
• SDI
• USB
• IP

Streaming

• RTSP / RTMP / SRT

Control

• RS-232 / RS-422
• IP
• USB

Power

• PoE
• DC 12V

1. What environments is this camera suitable for?
It is ideal for large meeting rooms and lecture halls

2. Does it support Full HD 60fps?
Yes, it supports 1080p at 60fps

3. What is the benefit of 20x optical zoom?
It allows clear capture at long distances

4. Does it support live streaming?
Yes, via IP streaming protocols

5. Can it be remotely controlled?
Yes, via IP and serial control

6. How many presets are supported?
Up to 256 presets

7. Can it output multiple signals at once?
Yes, HDMI SDI USB and IP simultaneously

8. Does it support PoE?
Yes, it supports PoE

9. Is it suitable for education?
Yes, for teaching and training

10. Does Ademax provide deployment support?
Yes, full consultation and deployment
